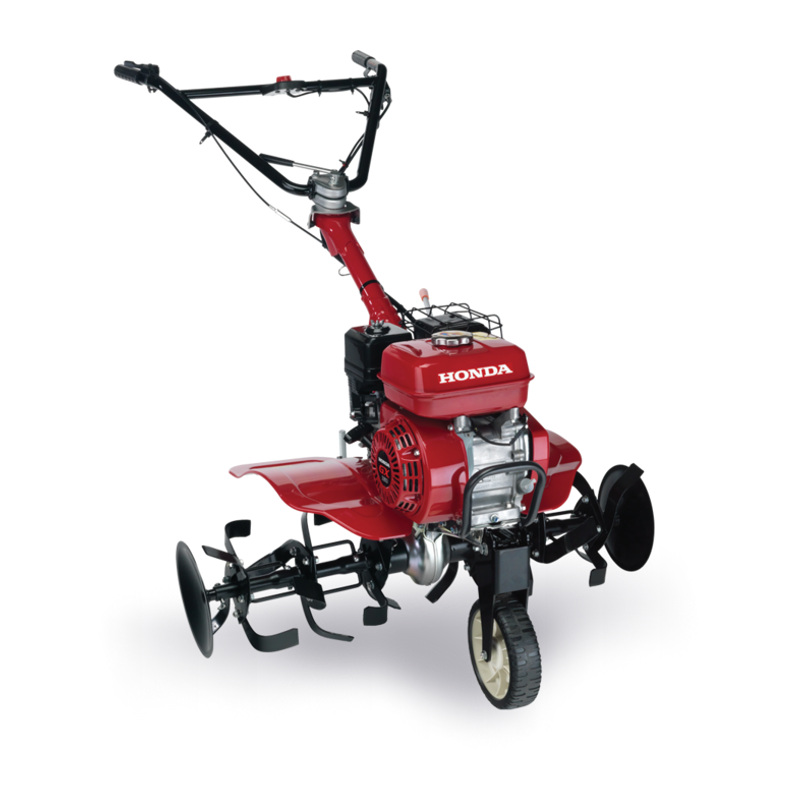

Honda FJ 500 - 5HP power tiller

Max tilling width (mm) 900

Max tilling depth (mm) 300

Forward speeds 2

Reverse speeds 1

Forward tool rotation speed (rpm) 80 - 113 rpm

Reverse tool rotation speed (rpm) 28rpm

Dimensions

Dimension (L x W x H) (mm) 1435 x 925 x 1015

Dry weight (kg) 62

ACC

Rotors/tines supplied Multiple rotor options

Wheels Front Transport

Side discs Yes

De-thatcher / scarifier Optional

Ridger Optional

Engine 4-stroke OHC

Engine model GX160

Engine displacement (cc) 163

Engine net power (kW/rpm) 3.6/3,600

Engine net torque (Nm/rpm) 10.3/2,500

Fuel tank capacity (Litres) 2.4

Engine oil capacity (Litres) 0.58

Starter Recoil

Drive clutch Manual - belt tension

Transmission Constant mesh

Final transmission Chain

Sound pressure at operators ears (dB(A)) 81

Guaranteed sound power level (dB(A)) 96

Vibration (m/sec²) 5.8

Foldable handle Yes

Height adjustable handle Yes

Swing handle Yes
